How to Convert a consultation Dash app into an Executable GUI

Background

Instead of uploading your Dash app to a cloud platform for distribution, you might want to transform it into an executable file in windows or on a Mac. This post will discuss the steps necessary to attain a stable executable Dash app on your PC that you can distribute to friends or colleagues.

It’s possible to create one Dash app file and convert that one into an executable as described in this Plotly Community post with the following at the end of a script:

if __name__ == '__main__':
Timer(1, open_browser).start(); # "open_browser" is the function that refers to a set of commands to let Selenium open a browser.
app.run_server(debug=True, port=port)

In my experience, it did help in opening up a browser automatically and then running the dash app in it, however, this led to an unstable app when converted to an executable file (also when changing the debug settings). The method that worked was the following:

Method

1. Install Selenium and the right webdriver

The first step is to pip install the Selenium web automation package and copy the web driver for the browser (for instance Chrome) you want to use to the right directory (which is /usr/bin or /usr/local/bin). We will need selenium later to launch a browser during the startup of the executable.

2. Add an extra main file to the dash app

The app layout file: dash_app.py

Create a dash_app.py that file launches the Dash app on a local server.

import dash
import dash_html_components as html
app = dash.Dash(__name__, external_stylesheets=[dbc.themes.COSMO])
app.layout = html.Div(APP LAYOUT HERE)
if __name__ == '__main__':
app.run_server(host='0.0.0.0', port=8080, debug=False, use_reloader=False)

The main file: main.py

Create a main.py file that launches the Selenium browser.

import time
from selenium import webdriver
import subprocess
import json
import threading as thr
def kill_server():
subprocess.run("lsof -t -i tcp:8080 | xargs kill -9", shell=True) # kill the server is a dash app is already running
def start_dash_app_frozen():
path_dir = str(path.dirname(sys.executable))
subprocess.Popen(path_dir+"/dash_app", shell=False) # dash_app is the name that will be given to executabel dash app file
def start_driver():
driver = webdriver.Chrome()
time.sleep(5) # give dash app time to start running
driver.get("http://0.0.0.0:8080/") # go to the local server
save_browser_session(driver) # save the browser identity info
print("DRIVER SAVED IN TEXT FILE browsersession.txt")
def save_browser_session(input_driver):
driver = input_driver
executor_url = driver.command_executor._url
session_id = driver.session_id
browser_file = path_dir+"/browsersession.txt"
with open(browser_file, "w") as f:
f.write(executor_url)
f.write("\n")
f.write(session_id)
def keep_server_running():
while True:
time.sleep(60)
print("Next run for 60 seconds")
def main():
kill_server() # kill open server on port
thread = thr.Thread(target=start_dash_app_frozen)
thread.start() # start dash app on port
start_driver() # start selenium controled chrome browser and go to port
keep_server_running() # keep the main file running
if __name__ == '__main__':
main()

3. Compiling “one-file executable” of main.py and a “one-dir executable” of the dash_app.py and associated folders with Pyinstaller

Install pyinstaller:

pip install pyinstaller

Create an install.sh file. Make it executable with the command:

chmod u+x install.sh

Then write something like the following in an extra file to make your life easy:

Installation file: install.sh

#!/bin/sh

echo "creating main executable file "
pyinstaller --onefile --noconfirm main.py
echo "moving main executable file"
mv ./dist/main ./main
rm main.spec

echo "creating directory with files for application"
pyinstaller --onedir --noconfirm dash_app.spec
echo "moving main executable to directory"
mv ./main ./dist/dash_app/
mv ./dist/dash_app/ ./finale_name_of_app_dir

echo "executable creation completed, press enter to continue"
read input

Before running the above create a spec file that contains the variables (such as included files, packages, etc.) that Pyinstaller is going to deploy for the production of the executable. Use the following command in the prompt to make the spec file:

pyinstaller dash_app.spec

Now change the content of the spec file to include important files. The spec file uses Python syntax. You can find more information about specs over here.

Installation configuration file: dash_app.spec

...
...
...
added_files = [
('parameters.json', '.' ), # of course do NOT add your secrets.json file if you are planning to distribute the executable
('testenv.json', '.' ),
('state.json', '.'),
('./venv/lib/python3.8/site-packages/dash_daq', './dash_daq'), # add for instance a package that is not automatically included by Pyinstaller.
]
...
...
...

4. Run

./install.sh

Results

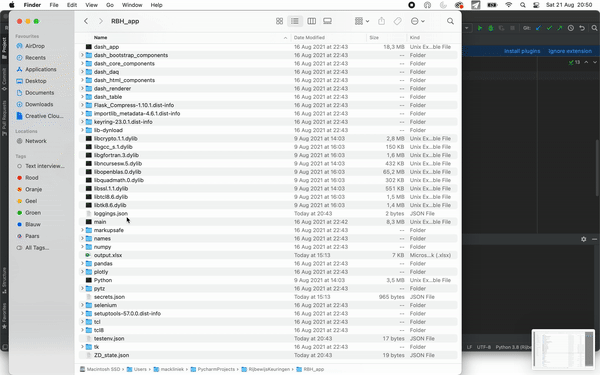

A gif that shows the result:



Thank you for reading, and good luck converting your app! Let me know in the comments if you have any questions.
